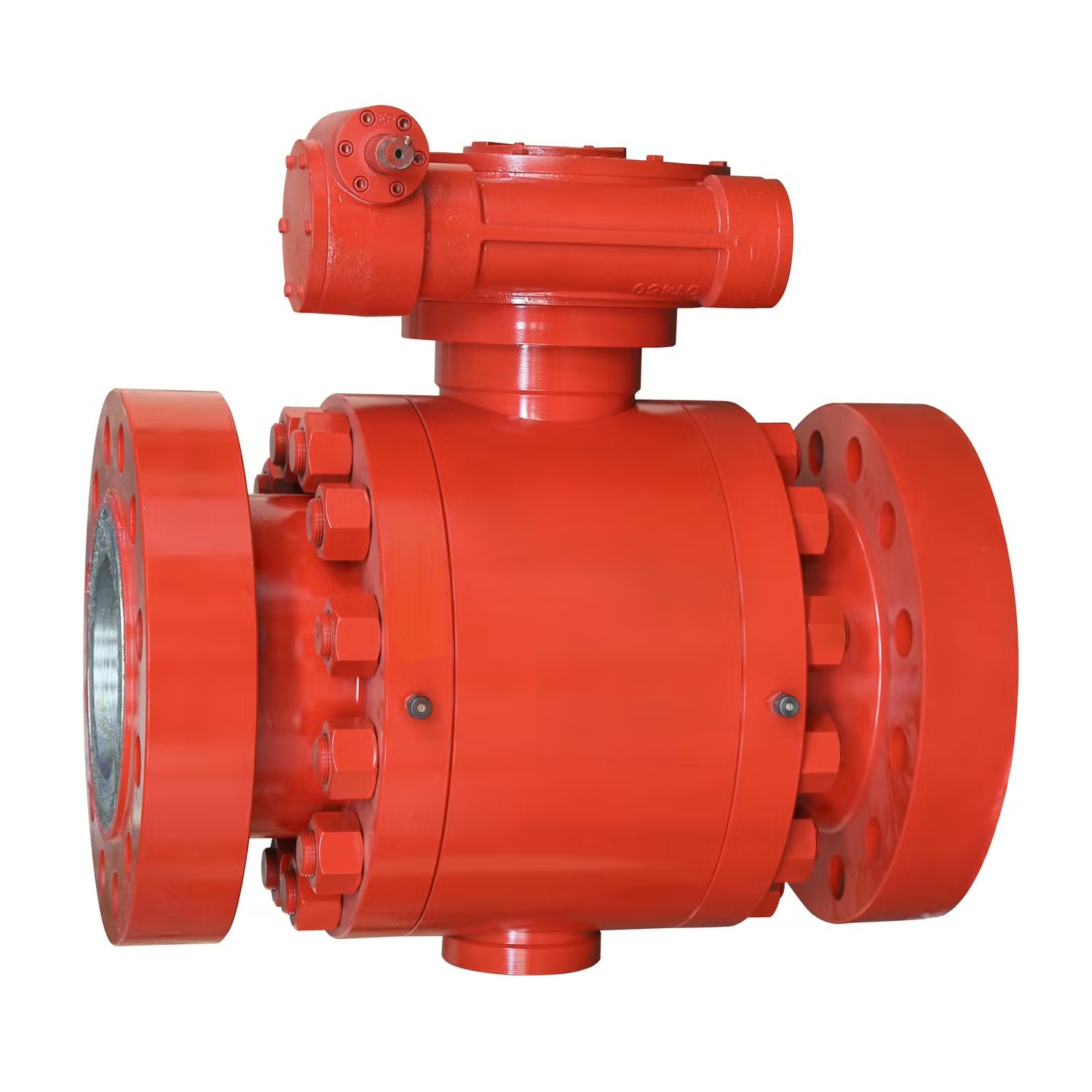

Trunnion Mounted Ball Valve (API 6A)
Standard
API 6A / ASME B16.34
API 6A / ASME B16.34
Materials
A 487 GR 4C, AISI 4130, AISI 410, CF8M, F316, INCONEL 625, Material class from AA to HH
A 487 GR 4C, AISI 4130, AISI 410, CF8M, F316, INCONEL 625, Material class from AA to HH
Size Range
2-1/16" to 7-1/16"
2-1/16" to 7-1/16"
Pressure Rating
2K, 3K, 5K, 10K, 15K
2K, 3K, 5K, 10K, 15K
Performance Level
PR1 (PR2 on request)
PR1 (PR2 on request)
Ends
RF, RTJ
RF, RTJ
Special Features
2-Piece, 3-Piece Construction, Full Bore & Reduced Bore, Cast and Forged Construction, Soft Seat & Metal Seat, Pad Lock, Low fugitive emissions control, Double Block and Bleed, Double Piston Effect, Emergency Sealant Injector, Lip seals, NACE Service either MR-01-75 or MR-01-03, Lever / Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
