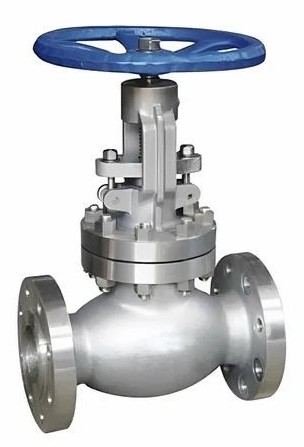

Cast Steel Globe Valve
Standard
BS 1873 / API 623 / ASME B16.34
BS 1873 / API 623 / ASME B16.34
Materials
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC, Aluminum Bronze like 95500, 95600, 9580
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC, Aluminum Bronze like 95500, 95600, 9580
Size Range
2" to 24" (DN50 to DN600)
2" to 24" (DN50 to DN600)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, By-Pass, Lantern rings, grease injectors, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
