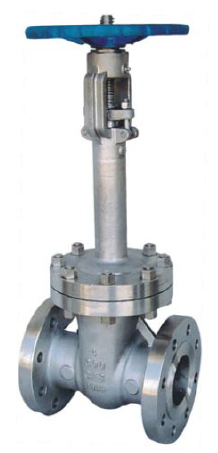

Cryogenic Gate Valve
Standard
BS 6364 / API 600 / ASME B16.34
BS 6364 / API 600 / ASME B16.34
Materials
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN
Size Range
2" to 36" (DN50 to DN900)
2" to 36" (DN50 to DN900)
Pressure Rating
Class 150 to Class 1500
Class 150 to Class 1500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, By-Pass, Lantern rings, grease injectors, Chain-wheel, cold box and non-cold box application, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
