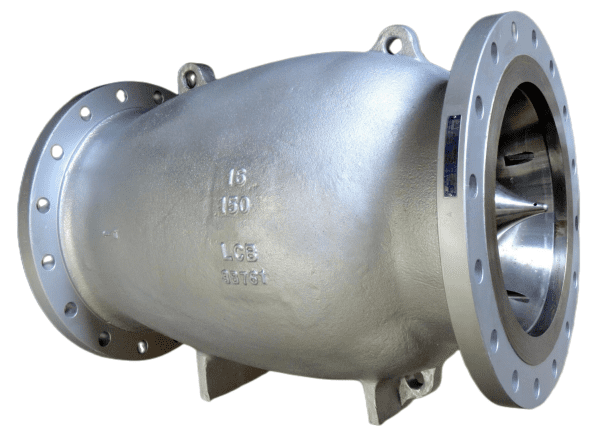

Axial Flow Check Valve
Standard
API 6D / ASME B16.34
API 6D / ASME B16.34
Materials
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC
Size Range
2" to 48" (DN50 to DN1200)
2" to 48" (DN50 to DN1200)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, Smooth and precise operation, quick response to backflow.
