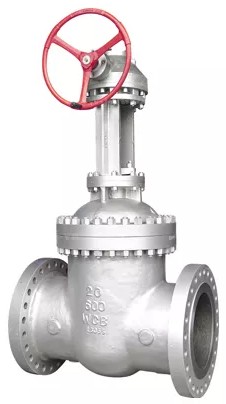

Cast Steel Gate Valve
Standard
API 600 / ASME B16.34
API 600 / ASME B16.34
Materials
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC, Aluminum Bronze 95500, 95600, 9580
WCA, WCB, WCC, LCB, LCC, WC1, WC5, WC6, WC9, LC2, LC3, C5, C12, C12A, CF8, CF8M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, Monel M30C, Monel M35-1, Monel CZ100, Inconel CY40, CW2M, N12MV, CW12MW, CW6M, CU5MCuC, CW6MC, Aluminum Bronze 95500, 95600, 9580
Size Range
2" to 48" (DN50 to DN1200)
2" to 48" (DN50 to DN1200)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, By-Pass, Lantern rings, grease injectors, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements, Double disc or parallel slide gate available on request.
