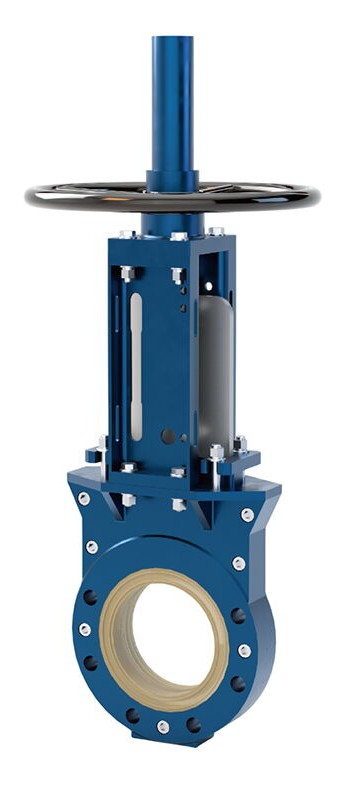

Lined Polyurethane Knife Gate Valve
Standard
MSS-SP-81 / API 6D
MSS-SP-81 / API 6D
Materials
CI, WCB, CF8, CF8M, CF3, CF3M
CI, WCB, CF8, CF8M, CF3, CF3M
Size Range
2" to 24" (DN50 to DN600)
2" to 24" (DN50 to DN600)
Pressure Rating
0.6 MPa, 1.0 MPa, 1.6 MPa, Class 150
0.6 MPa, 1.0 MPa, 1.6 MPa, Class 150
Ends
Wafer Type, Lug Type, Double Flange Type
Wafer Type, Lug Type, Double Flange Type
Special Features
Polyurethane seat ring, Polyurethane Inner Lining, Suitable for -30°C to +100°C temperature range, Handwheel, Bevel Gear, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
