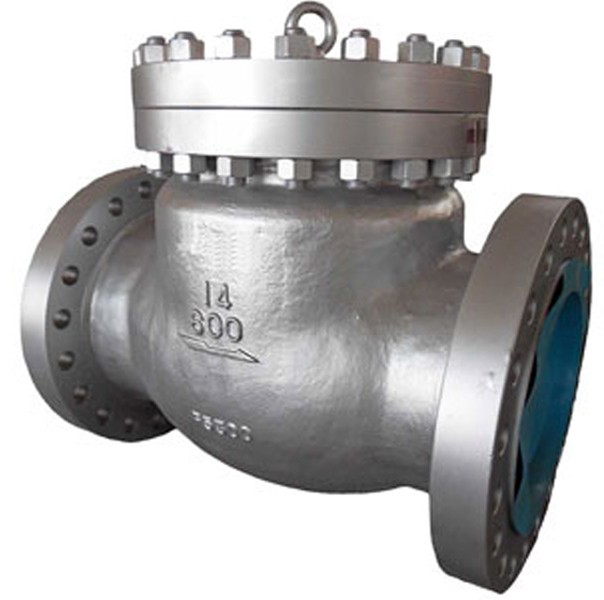

Cryogenic Swing Check Valve
Standard
BS 6364 / BS 1868 / ASME B16.34
BS 6364 / BS 1868 / ASME B16.34
Materials
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN
Size Range
2" to 36" (DN50 to DN900)
2" to 36" (DN50 to DN900)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, with Damper and counter weight.
