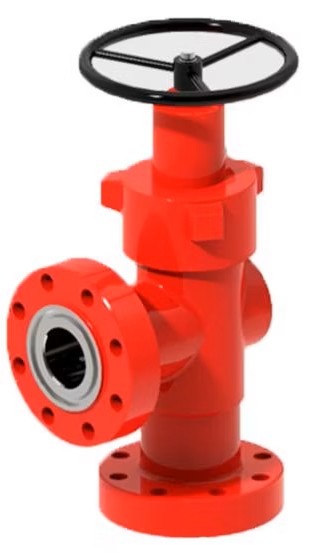

Choke Valve (API 6A)
Standard
API 6A
API 6A
Materials
A 487 GR 4C, AISI 4130, AISI 410, CF8M, F316, INCONEL 625, Material class from AA to HH
A 487 GR 4C, AISI 4130, AISI 410, CF8M, F316, INCONEL 625, Material class from AA to HH
Size Range
2-1/16" to 7-1/16"
2-1/16" to 7-1/16"
Pressure Rating
2K, 3K, 5K, 10K, 15K
2K, 3K, 5K, 10K, 15K
Performance Level
PR1 (PR2 on request)
PR1 (PR2 on request)
Ends
RF, RTJ
RF, RTJ
Special Features
Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, Lantern rings, grease injectors, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
