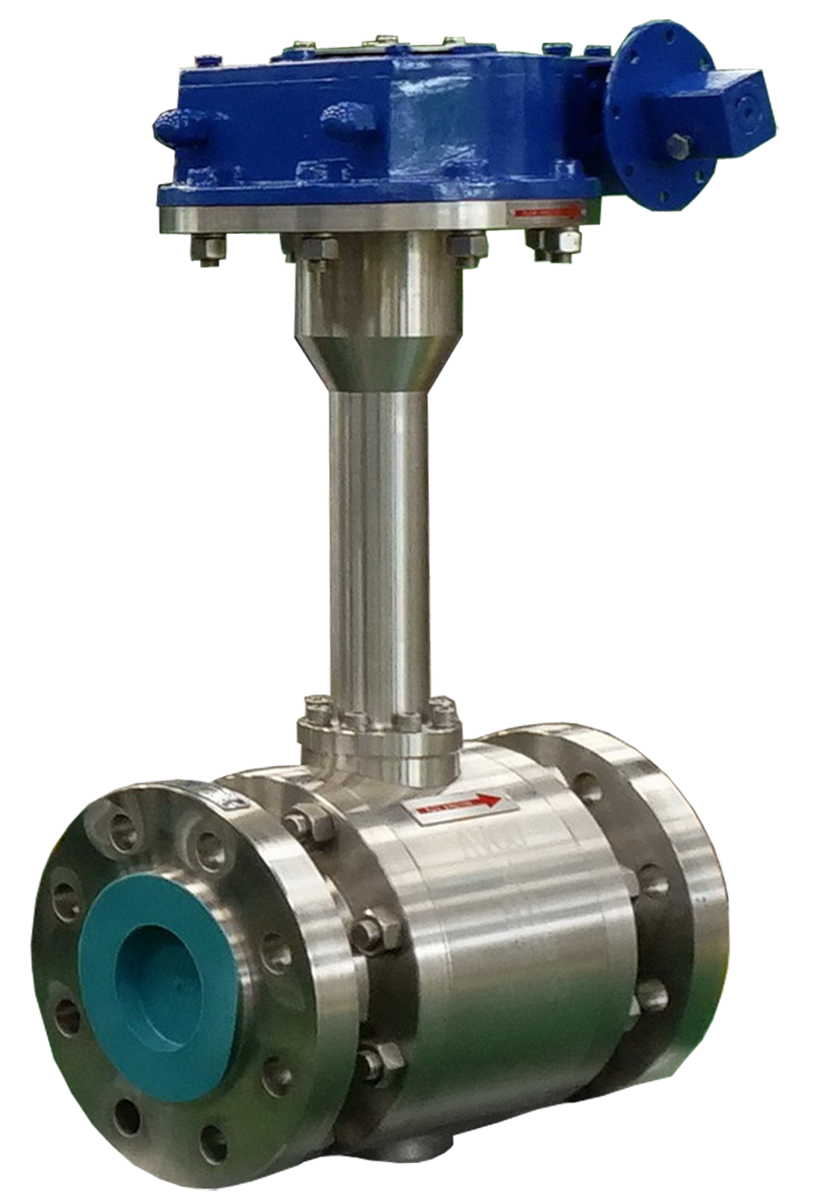

Cryogenic Trunnion Mounted Ball Valve
Standard
BS 6364 / API 6D / ASME B16.34
BS 6364 / API 6D / ASME B16.34
Materials
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, 6A, F316, F316L, F304, F304L, F51, F55, INCONEL 625, INCONEL 825
CF8, CF8M, CF3, CF3M, CF8C, CF10, CG8M, CE8MN, CD6MN, CD3MN, 6A, F316, F316L, F304, F304L, F51, F55, INCONEL 625, INCONEL 825
Size Range
2" to 36" (DN50 to DN900)
2" to 36" (DN50 to DN900)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE
RF, RTJ, BWE
Special Features
2-Piece, 3-Piece Construction, Full Bore & Reduced Bore, Cast and Forged Construction, Soft Seat & Metal Seat, Pad Lock, Low fugitive emissions control, Double Block and Bleed, Double Piston Effect, Emergency Sealant Injector, Lip seals, NACE Service either MR-01-75 or MR-01-03, Lever / Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
