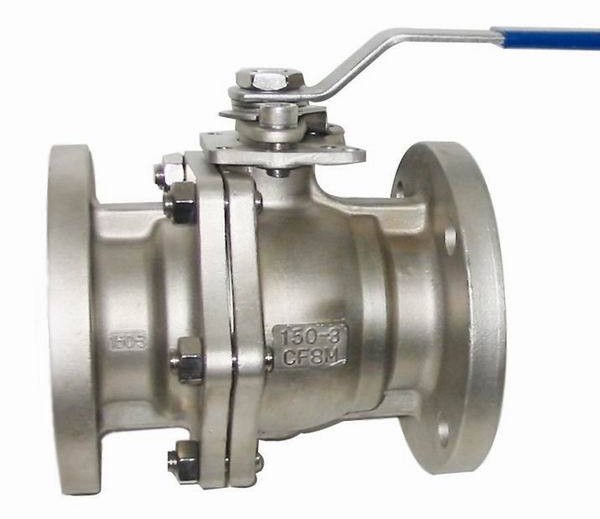

Floating Ball Valve
Standard
API 608 / ISO 17292 / API 6D / ASME B16.34
API 608 / ISO 17292 / API 6D / ASME B16.34
Materials
A105, LF2, LF3, F316, F304, F51, F55, WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, DUPLEX, SUPER DUPLEX, INCONEL 625, INCONEL 825
A105, LF2, LF3, F316, F304, F51, F55, WCB, LCB, LCC, CF8, CF8M, CF3, CF3M, DUPLEX, SUPER DUPLEX, INCONEL 625, INCONEL 825
Size Range
1/2" to 10" (DN15 to DN250)
1/2" to 10" (DN15 to DN250)
Pressure Rating
Class 150 to Class 2500
Class 150 to Class 2500
Ends
RF, RTJ, BWE, SWE, SE
RF, RTJ, BWE, SWE, SE
Special Features
1-Piece, 2-Piece, 3-Piece Construction available, Full Bore & Reduced Bore, Cast and Forged Construction, Soft Seat & Metal Seat, Pad Lock, Low fugitive emissions control, NACE Service either MR-01-75 or MR-01-03, Lever / Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements.
